Before diving into the configuration process, it's crucial to understand what a microinverter is and how it operates. Unlike traditional string inverters that connect multiple solar panels in series, microinverters are installed on each individual panel usually. This setup allows for independent operation, meaning if one panel is shaded or malfunctioning, it does not significantly affect the output of the other panels.

An 800W microinverter is designed to handle a specific voltage and current input, making it essential to select the right number and type of solar modules to maximize efficiency.

Choosing the Right Solar Modules

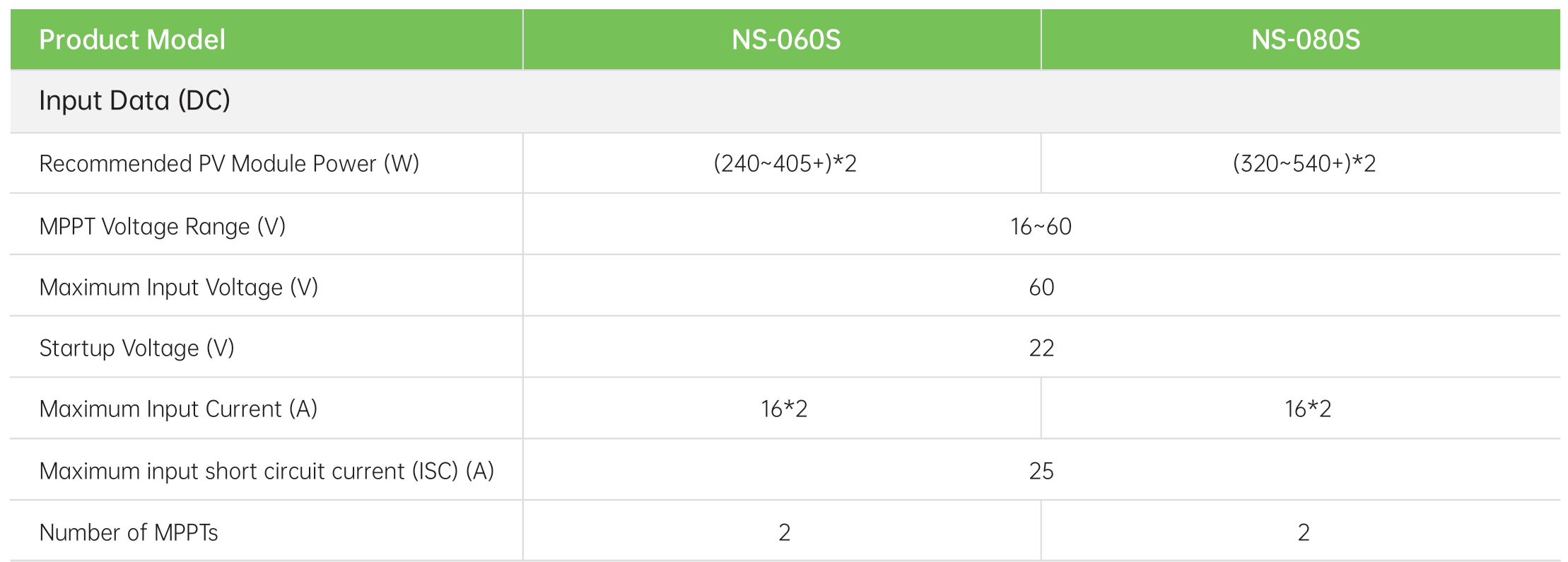

When configuring solar modules for an 800W microinverter, the first step is to select appropriate solar panels. For instance, you can connect a maximum of 2 panels (540W x 2 = 1080W) to the NS-080S microinverter, which is within the acceptable range, while the inverter limits the output to 800W. Therefore, it is advisable to keep the total wattage of the solar panels in a reasonable range.

Panel Orientation and Positioning

Once you have selected the appropriate solar panels, the next step is to consider their orientation and positioning. Solar panels should ideally face true south in the Northern Hemisphere and true north in the Southern Hemisphere to capture maximum sunlight throughout the day.  Additionally, a tilt angle between 30 and 45 degrees is generally recommended, but this can vary based on your geographical location. It’s also essential to ensure that there are no obstructions, such as trees or buildings, that could cast shadows on the panels during peak sunlight hours.

Exception

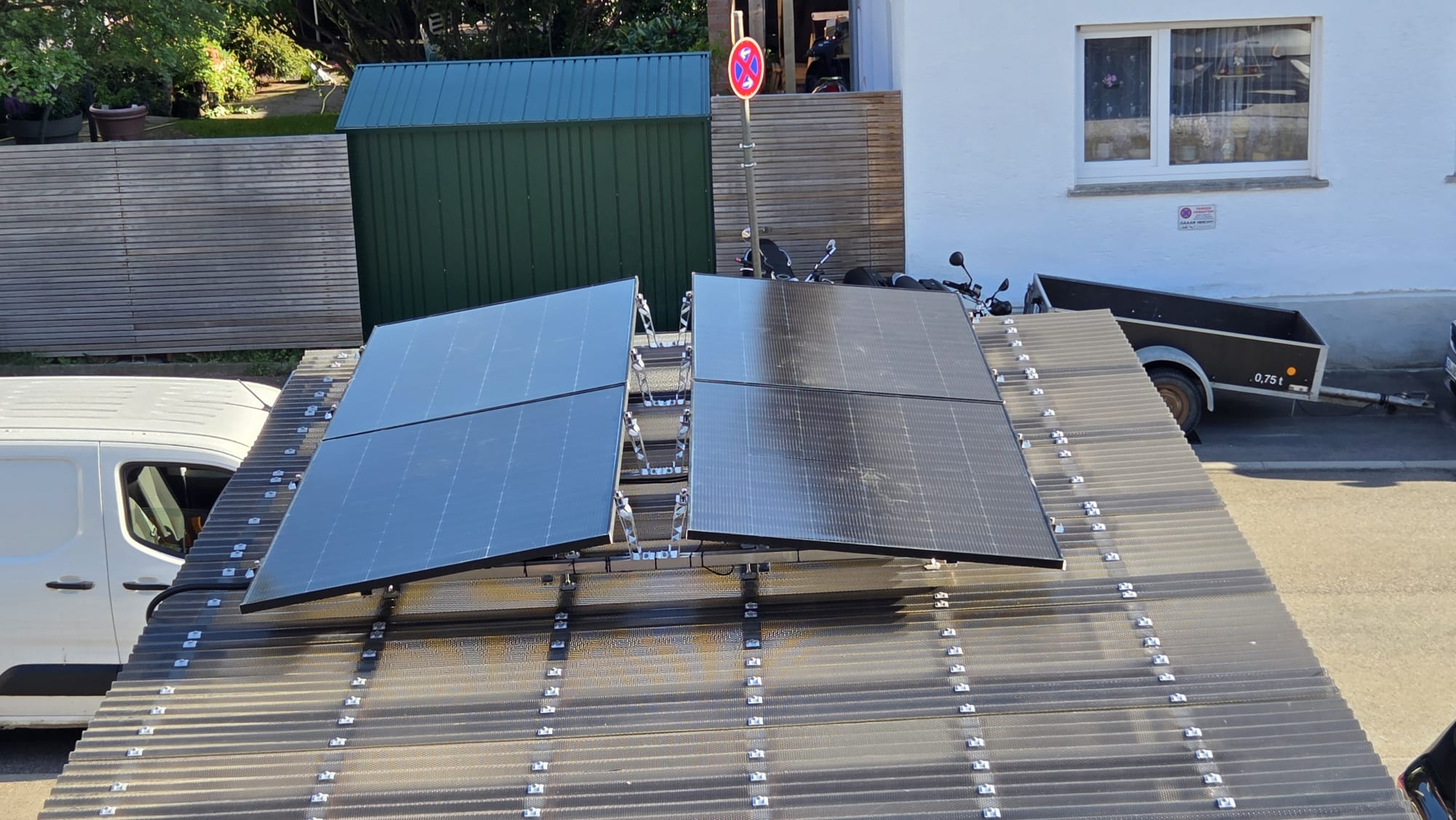

For scenarios such as courtyards, carports, or flat roofs, installing solar panels in an east-west orientation can be aesthetically pleasing. Such configuration means the panels won't operate at peak efficiency, while they can generate power over a longer period from morning through evening.  In such setups, it's feasible to use 4 panels, arranged as 2 pairs to connect to the 2 inputs of a microinverter. Each pair consists of 2 panels connected in parallel, keeping the input voltage unchanged, though the input current doubles—remaining within safe limits since neither panel operates at full capacity simultaneously. It's important to consult certified electricians regarding this type of installation to ensure it won't damage the microinverter.

Conclusion

Configuring solar modules for an 800W microinverter requires careful planning and execution. By selecting the right solar panels, calculating total wattage, positioning the panels correctly, wiring them properly, and ensuring a safe connection to your electrical system, you can maximize the efficiency of your solar energy system.

Regular monitoring and maintenance will further enhance the longevity and performance of your solar installation. With the right setup, you can harness the power of the sun to reduce your energy bills and contribute to a more sustainable future.
